Description
- Frameless Torque Motor 68LW01
- Operates at 48VDC for efficiency
- Achieves speeds up to 4000 RPM
- Delivers peak torque of 1.65N·m
- Features compact 68mm diameter
- Ideal for robotics and automation

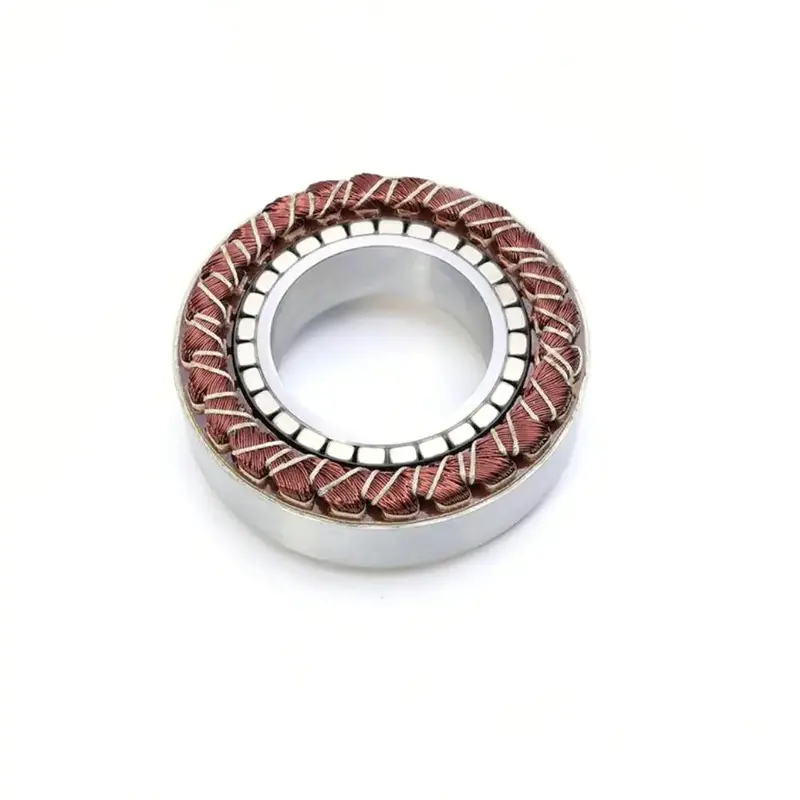

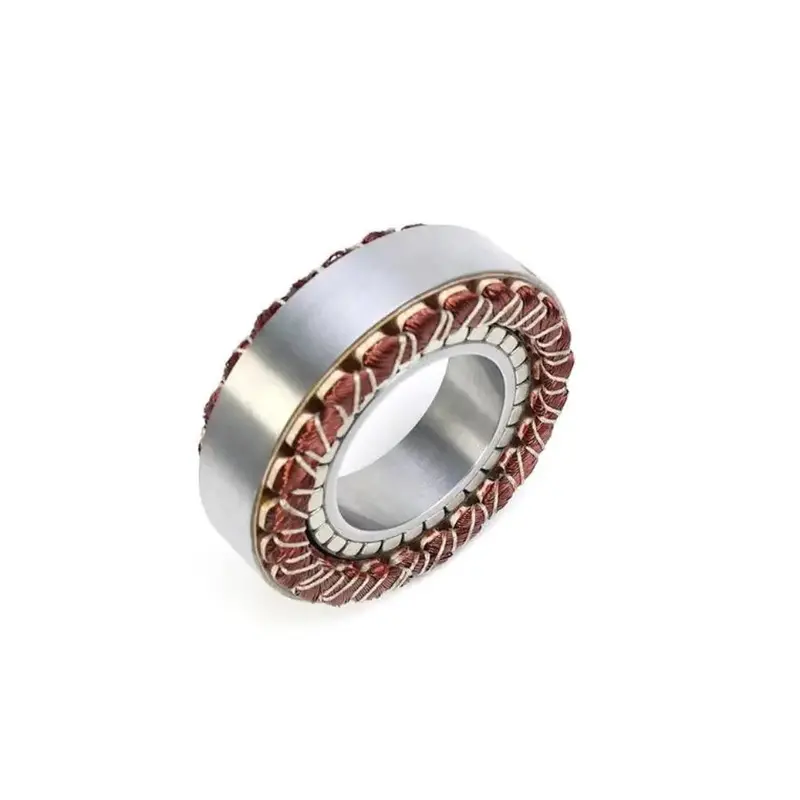

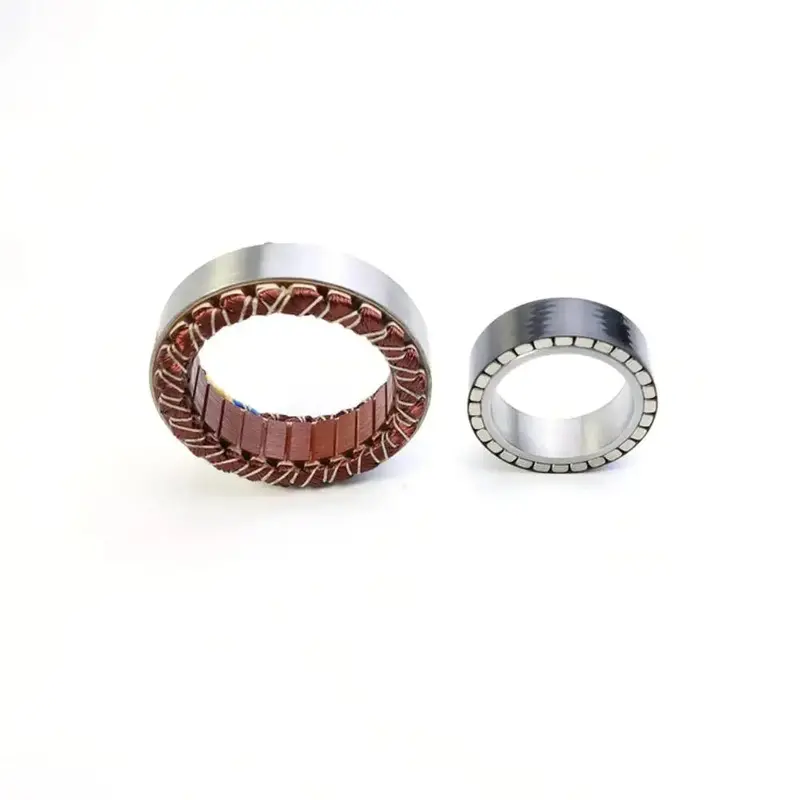

The Frameless Torque Motor 68LW01 is a compact and efficient 3-phase brushless motor designed for high-speed and high-torque applications. It operates at a rated voltage of 48VDC and achieves speeds up to 4000 RPM, delivering a rated torque of 0.55N·m. This motor is particularly suitable for use in robotics, automation systems, and high-speed machinery due to its compact design and dynamic response capabilities.
The motor is equipped with 7 pole pairs, allowing it to produce a peak torque of 1.65N·m. It features a low inductance and resistance, which, along with a back-EMF constant, ensures efficient energy use and smooth operation. With a rated power of 231W, the motor’s dimensions of 68mm outer diameter and 21.7mm height provide powerful performance within a compact footprint. This makes it ideal for applications that require responsive torque and minimal inertia.
- 1x Frameless Torque Motor 68LW01
- Outer diameter: 68 mm
- Height: 21.7 mm
ZIP File
- Rated voltage: 48 VDC
- Rated speed: 4000 RPM
- Rated current: 5.6 A
- Rated torque: 0.55 N·m
- Rated power: 231 W
- Resistance: 0.44 Ω
- Peak torque: 1.65 N·m
- Peak current: 19 A
- Pole pairs: 7
- Inductance: 0.35 mH
- Back-EMF constant: 6.4 Vrms/krpm
