Description
- Rugged terrain robot
- For robotics developers
- Aluminum welded frame
- RC sender included

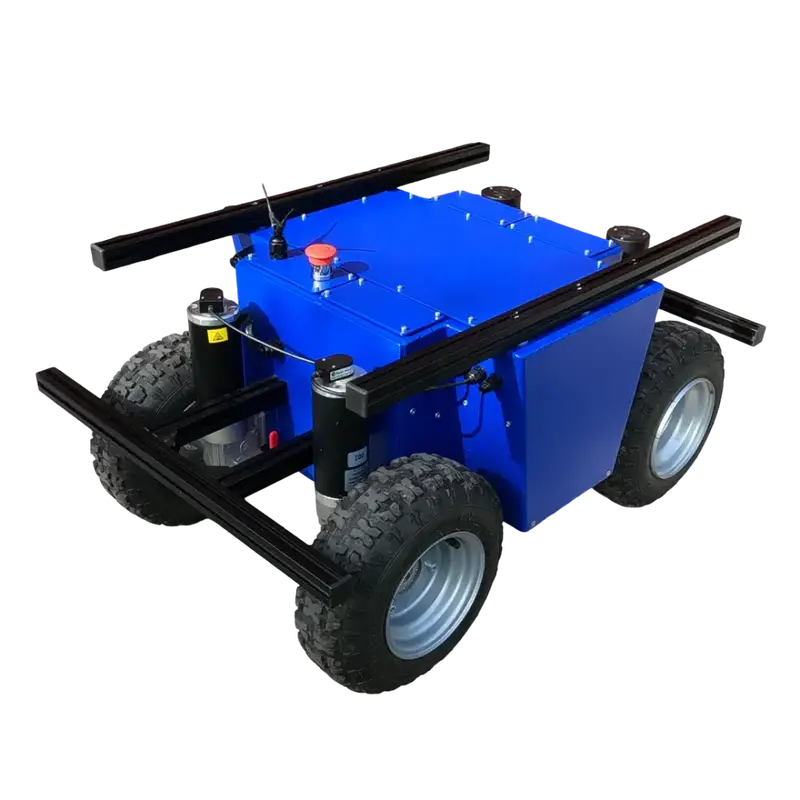

Bigbot is a mobile robot development platform which feels at home in rugged terrain like freshly plowed farmland. But also, in a business park patrolling the environment. The platform targets robotics developers who want to focus on software development and not have to worry about the hardware.
1 Bigbot with bigbot blue powder coating and RC Sender
1 Mudguard package
922x618x464mmdocReady(function() {$(‘button[aria-controls=unique-tab-5]’).one(‘click’,function() {$(“#iframe-video-1″).html(”);$(“#iframe-video-2″).html(”);$(“#iframe-video-3″).html(”);})});
Bigbot
– Aluminum welded frame 6mm and 3mm thick plates
– Motor drive Basicmicro Roboclaw 2x60A, 34VDC Dual controller
– 4 motors DC 24V 300W with reduction 1/32
– 2 encoders 256 CPR (on front left and right motor)
– 2 holding brake 24VDC (on rear left and right motor)
– 4 wheels 6 inch rim and 13×5.00-6 tire with profile
– 4 wheelhubs aluminum CNC turned
– Aluminium black extruded 3030 profile for mounting external components (total length 3,5 meter)

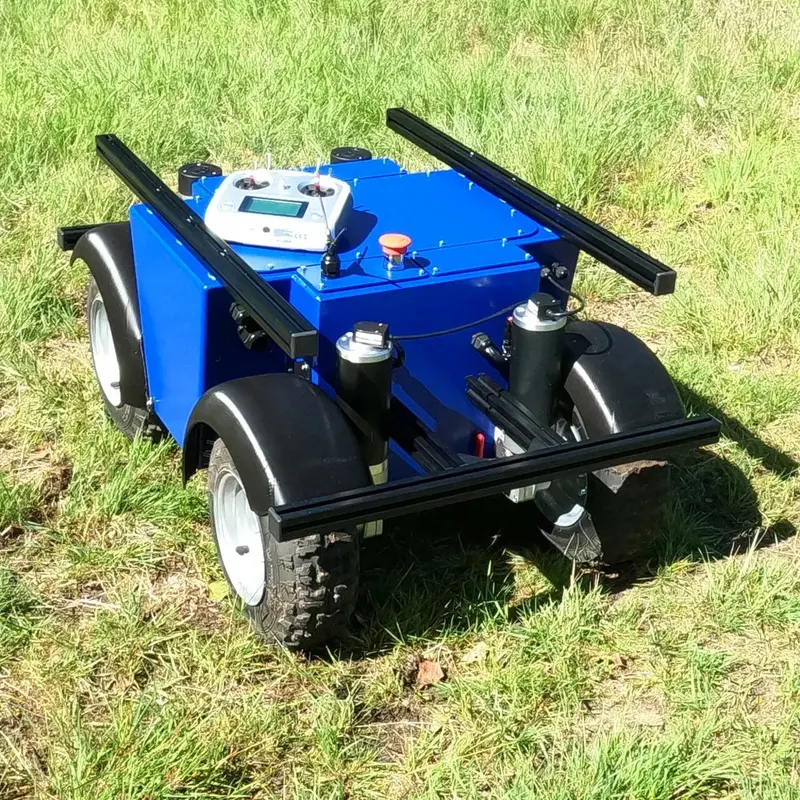

– RC sender 10 channel type Flysky FS-i6S and receiver Flysky iA6B
– Relay 200A for switching off power to drive (safety) with 100A bypass-diode for energy recharging to battery.
– 5 spare glands IP68 (1xM25, 2xM16, 1xM12) for waterproof feedthrough
– Manual safety switch
– On/off-switch 100A, battery charging-plug, DIN rail 300 mm with connectors, and 24-12 DC/DC converter and wiring
Powder coating bigbot blue
– Zirconising pre-treatment (chrome-free) plus second coat 70um matt finish

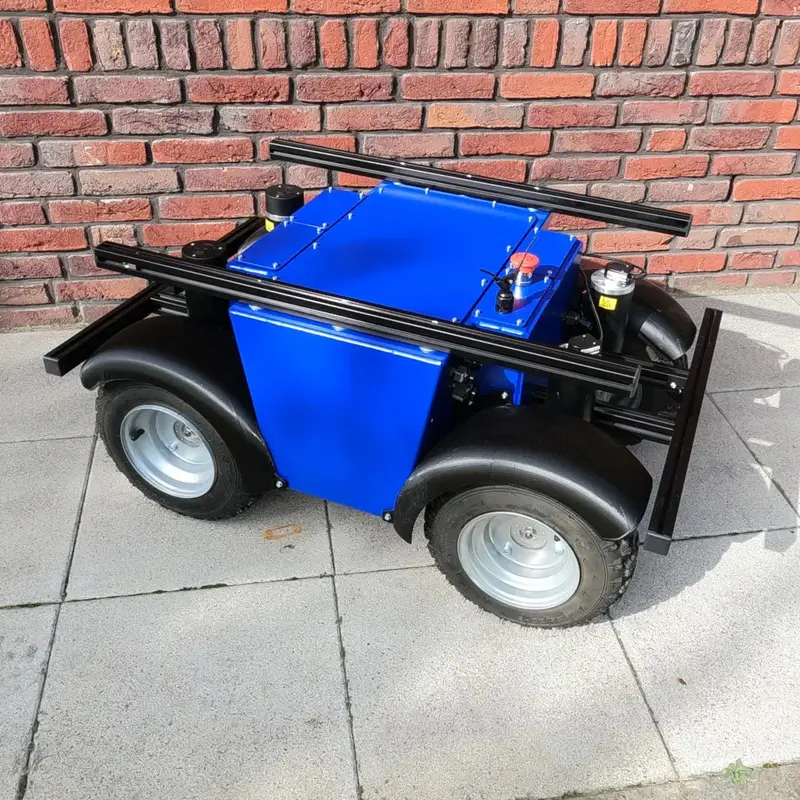

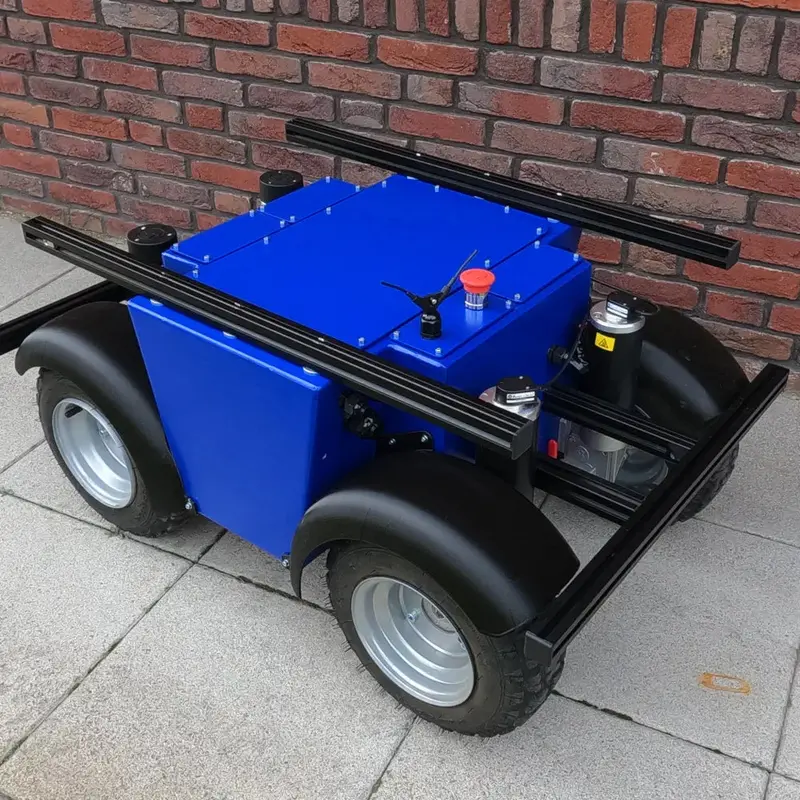

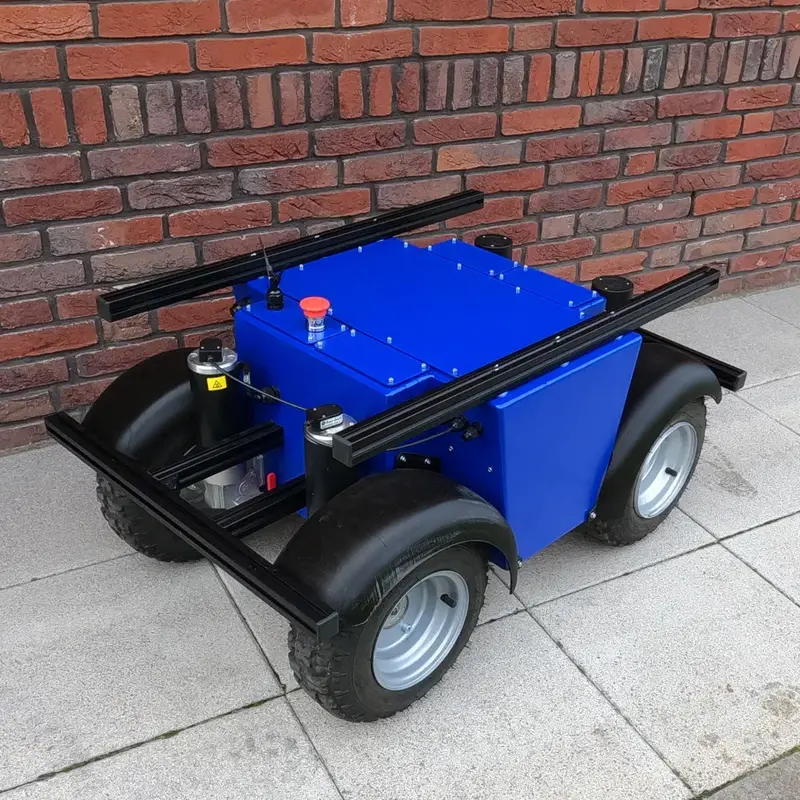

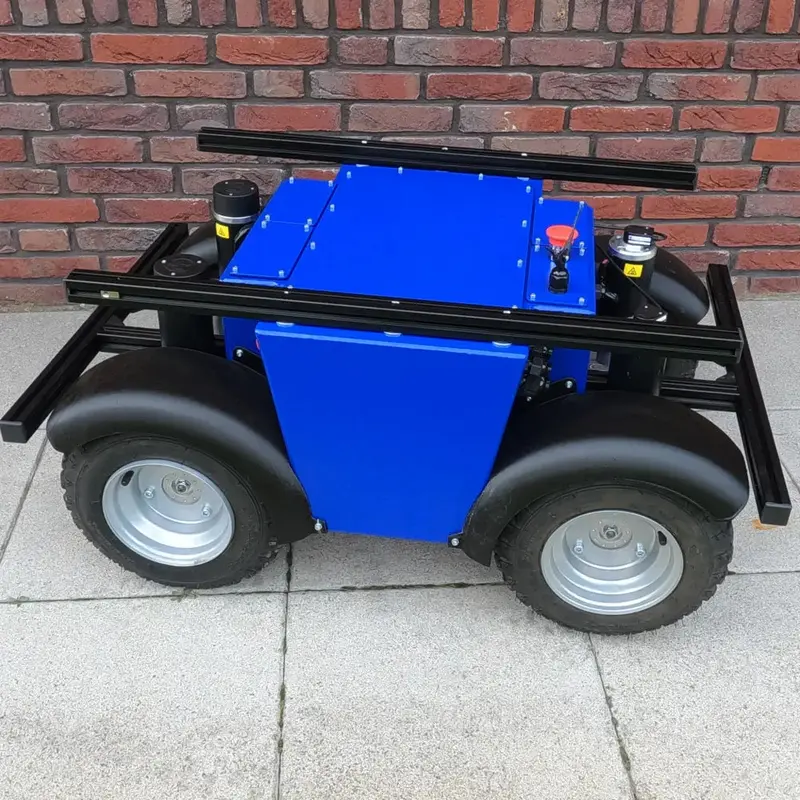

Mudguard package
– 2 left-version 3D-printed mudguards (matt black)
– 2 right-version 3D-printed mudguards (matt black)
– Mounting screws included
