Description
- DFRduino Uno USB Microcontroller
- Based on the ATmega328
- Open-source physical computing platform
- RoHS Compliant

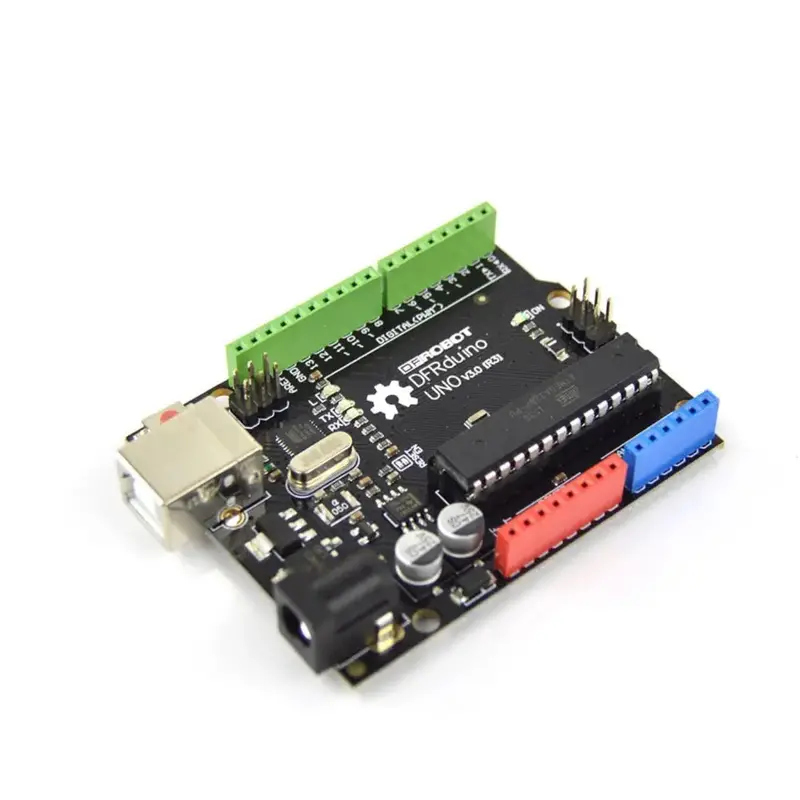

The DFRduino Uno USB Microcontroller V2.0board is based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller. simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
PDF File
• Datasheet
- Microcontroller: ATmega328 (DIP Package)
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits): 6-20V
- Digital I/O Pins: 14 (of which 6 provide PWM output)
- Analog Input Pins: 6
- DC Current per I/O Pin: 40 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 32 KB of which 2KB used by bootloader
- Clock Speed: 16 MHz
- Size: 75x54x15 mm
- Weight: 45 gram
