Description
- MyoWare 2 Muscle Sensor Basic Kit
- Measures muscle activity via surface EMG
- Includes compact, easy-to-use design
- Features upgraded chipset for reliability
- Visualizes muscle flexion with LED bar graph
- Eliminates soldering with snap connector system
The MyoWare 2 Muscle Sensor Basic Kit is an advanced electromyography sensor kit compatible with Arduino, designed to measure and visualize muscle activity. This kit provides essential components from the MyoWare 2 ecosystem, allowing users to easily monitor muscle flexion. It includes the MyoWare 2 LED Shield, EMG sensor pads, and a reference cable for connecting to larger muscle groups. The sensor’s compact design and upgraded chipset enhance performance and reliability, capturing muscle activity through surface electromyography.
The sensor analyzes the electrical activity of muscles, outputting a signal that reflects the degree of muscle flexion. The innovative snap connector system simplifies setup by eliminating the need for soldering, while the blue 10-segment bar graph visually represents muscle activation levels. This kit is ideal for gauging muscle exertion during workouts, educational purposes, or adding a myoelectric element to costumes.
The MyoWare 2 Muscle Sensor Basic Kit is designed to function independently, following the standalone example in the MyoWare 2 Muscle Sensor Guide, without requiring a microcontroller. It includes a mini screwdriver for shield removal and a USB A to C cable for recharging the LiPo battery, ensuring ease of use and convenience.

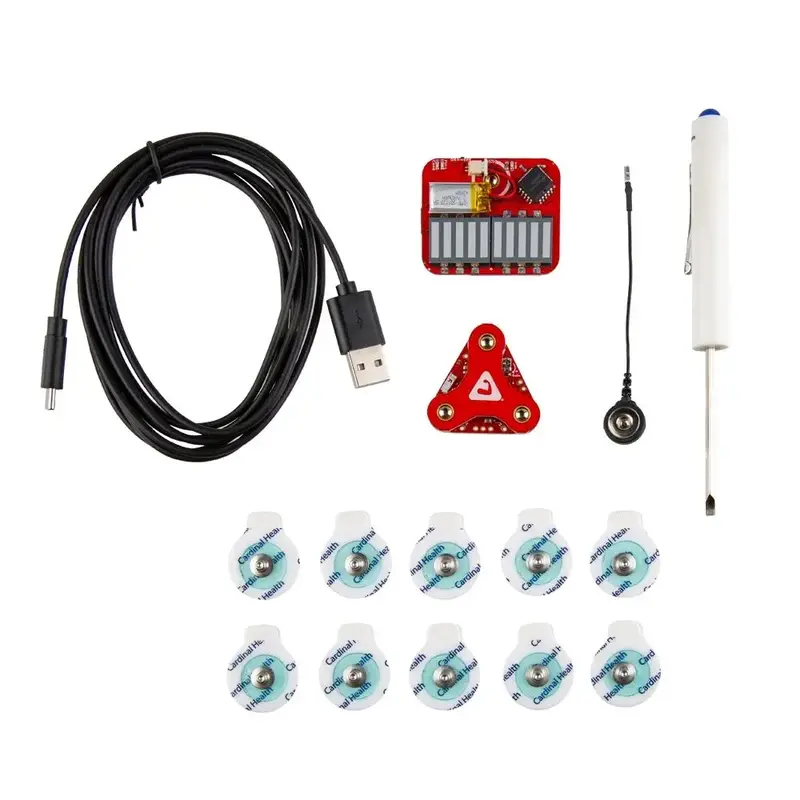

- 1x MyoWare 2 Muscle Sensor
- 1x MyoWare 2.0 LED Shield
- 1x MyoWare Reference Cable
- 1x Reversible USB A to C Cable – 2m
- 10x Disposable Surface EMG/ECG/EKG Electrode – 24mm
- 1x SparkFun Mini Screwdriver
Websites
- MyoWare 2 Muscle Sensor Basic Kit – Ecosystem Hookup Guide
- MyoWare 2 Muscle Sensor Basic Kit – Hookup Guide
- MyoWare 2 Muscle Sensor Basic Kit – Arduino Example Repo
PDF File
- Redesigned with a compact, easy-to-use design
- Upgraded with the latest chipset for enhanced performance and reliability
- Measures muscle activity through surface electromyography (EMG)
- Outputs a signal (0-VIN volts) indicating muscle flexion degree
- Innovative snap connector system eliminates the need for soldering connections
- Blue 10-segment bar graph visually represents muscle activation
