Threaded Tetrix to goBILDA® Through-Hole Mounting Pattern Adapter (Part #16-8)

Description

Description

• Threaded Tetrix to Thru-Hole goBILDA Pattern Adaptor (16-8)
• Features 16mm goBILDA pattern compatibility
• Includes counterbores for flush fastening
• Captures M4 locknuts for secure installation
• Aligns with Tetrix build system
• Made from clear anodized aluminum

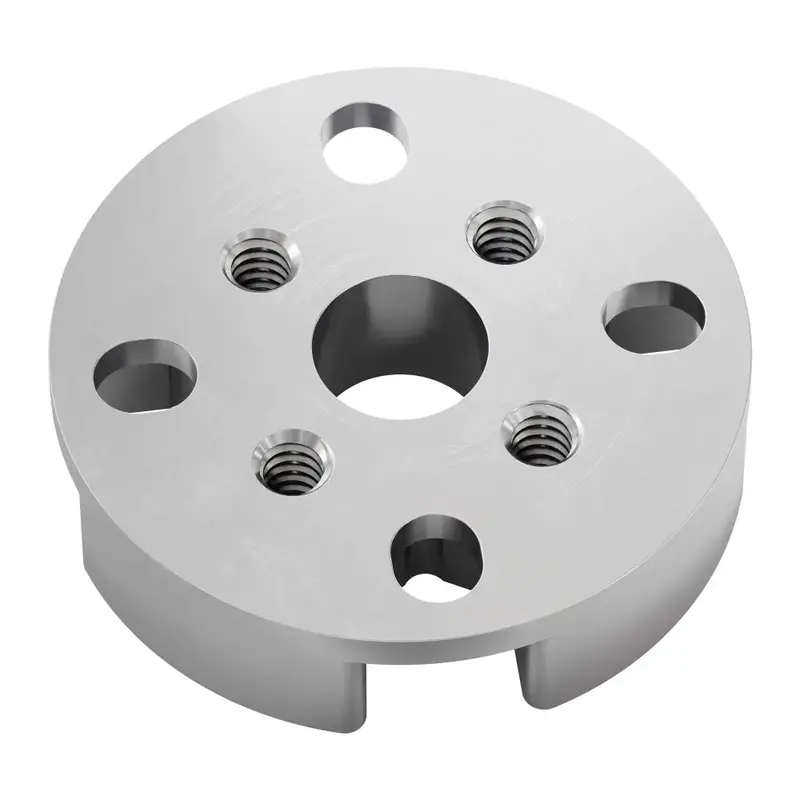

The Threaded Tetrix to Thru-Hole goBILDA Pattern Adaptor (16-8) features thru-holes that align with the 16mm goBILDA pattern, with slots for 24mm spacing. It includes counterbores for M4 socket head screws, allowing a flush surface for fastening. The hex-profile counterbores can capture M4 locknuts for bottom-up screw insertion. Additionally, 6-32 UNC holes align with the Tetrix build system, facilitating easy attachment of thru-hole components to the adaptor’s face.

View moreWhat’s Included

• 1x Threaded Tetrix to Thru-Hole goBILDA Pattern Adaptor (16-8)

Links

ZIP File

• Threaded Tetrix to Thru-Hole goBILDA Pattern Adaptor (16-8) – Step File

Specifications

• Material: Aluminum
• Finish: Clear Anodized
