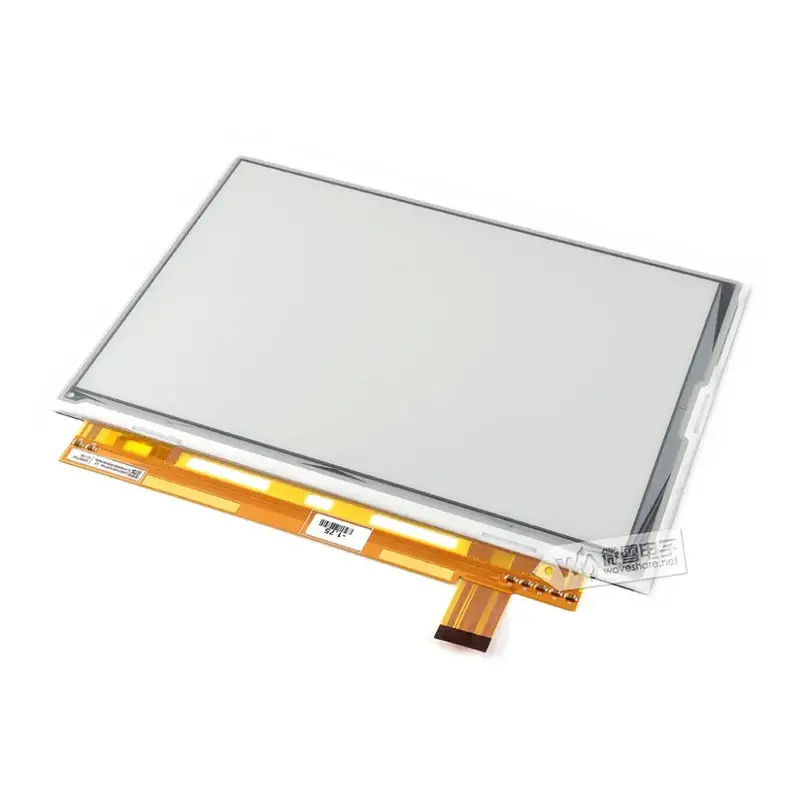

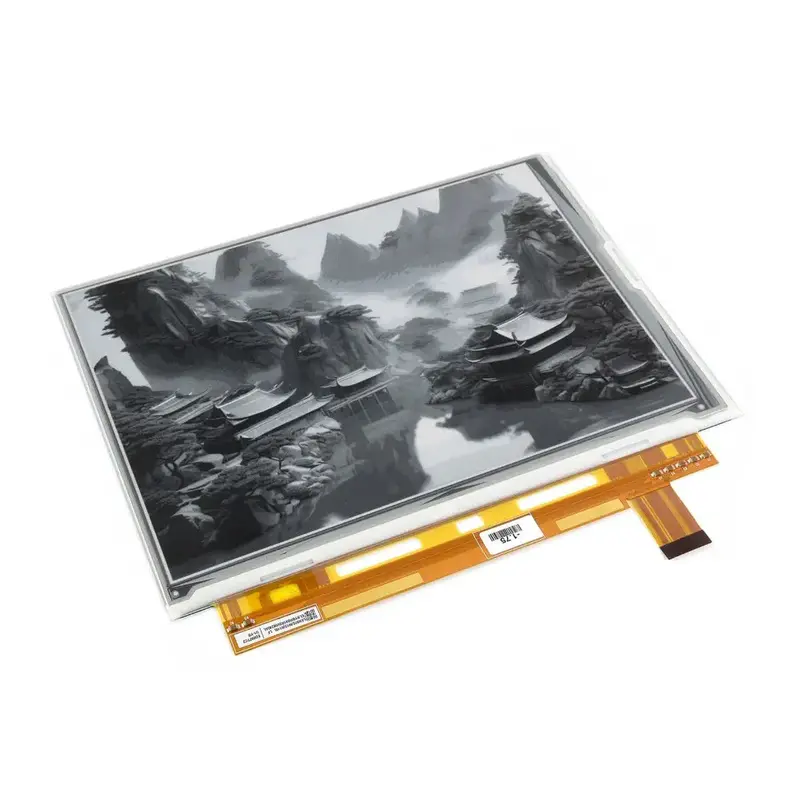

- Waveshare 9.7″ E-Ink Raw Display, 1200×825
- Offers 1200×825 pixel resolution
- Consumes power only during refresh
- No backlight, retains last display
- Includes resources for easy integration
- Wide viewing angle over 170 degrees
The Waveshare 9.7″ E-Ink Raw Display, 1200×825 is a sophisticated electronic paper display that offers a resolution of 1200×825 pixels. This display communicates via a parallel port and supports partial refresh, making it suitable for various applications such as shelf labels and industrial instruments. Its design is characterized by ultra-low power consumption, as power is primarily required only during the refreshing process. This feature, combined with its ability to maintain a clear display without electricity, enhances its efficiency and utility in diverse settings.
The display does not incorporate a backlight, which allows it to retain the last displayed content for extended periods even when powered down. This characteristic is particularly advantageous for applications where continuous display is necessary without constant power supply. The wide viewing angle of over 170 degrees ensures that the display remains clear and legible from various perspectives, further enhancing its versatility.
Additionally, the product is accompanied by development resources and a manual, which include a driver board schematic and examples for integration with platforms such as Raspberry Pi, Jetson Nano, and STM32. This support facilitates the integration and utilization of the display in various technological projects and applications.
- 1x Waveshare 9.7″ E-Ink Raw Display, 1200×825
- Outline dimensions: 218.8 x 156.425 x 1.15 mm
- Display size: 202.8 x 139.425 mm
Website
- No backlight; retains last displayed content even when powered down
- Low power consumption; power needed only for refreshing
- Includes development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/STM32)
- Operating voltage: 5V
- Interface: parallel port
- Dot pitch: 0.169 × 0.169
- Resolution: 1200 × 825
- Display color: black and white
- Gray scale: 2-16 (1-4 bit)
- Full refresh time: less than 1 second
- Viewing angle: greater than 170 degrees
